Virtual surgical planning in fibula flap mandibular reconstruction

Fernando Monsalve-Iglesias, Ángel Martinez-Sahuquillo Rico, Lydia Fraile-Ruiz

Oral and Maxillofacial Surgery, Virgen de las Nieves Hospital, Granada, Spain

Contributions: (I) Conception and design: F Monsalve-Iglesias; (II) Administrative support: None; (III) Provision of study materials or patients: L Fraile-Ruiz, Á Martinez-Sahuquillo Rico; (IV) Collection and assembly of data: L Fraile-Ruiz, Á Martinez-Sahuquillo Rico; (V) Data analysis and interpretation: F Monsalve-Iglesias; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Fernando Monsalve-Iglesias, MD. Oral and Maxillofacial Unit, Neurorebilitacion and Traumatología Hospital, Avenida de Juan Pablo II, s/n, 18013 Granada, Spain. Email:

Abstract: Mandibular reconstruction is one of the workhorse in head and neck reconstructive surgery, with the free fibula flap currently considered the gold standard technique. The last two decades have seen considerable developments and a surge in popularity of virtual surgical planning (VSP) and Computer-aided design and manufacturing (CAD-CAM). Starting with virtual performing of the surgery, the possibilities that this technology offers are enormous. Stereolithographic models, customized bone cut guides and pre-bent reconstruction plates are very useful intraoperative tools. In spite of the high costs of this technology, it is helpful to surgeons in the following ways: (I) During ablative oncological surgery, cleaner bone margins are easily obtained due to bone cut accuracy enhancement; and (II) the efficiency of reconstructive surgery is improved by simplifying the otherwise time-consuming reconstructive steps associated with the traditional free-hand technique. The aim of this article is to describe our experience and to share the tips and pitfalls than we have found along these years with this technology which is producing a paradigm shift in bone graft reconstruction. In conclusion, our recommendation is to use a case-by-case evaluation to select those patients for whom VSP and CAD-CAM will help to obtain the best aesthetical and functional outcomes.

Keywords: Mandibular reconstruction; fibula free-flap; virtual surgical planning (VSP); computer-aided designing and manufacturing (CAD-CAM)

Received: 10 July 2020; Accepted: 28 July 2020; Published: 31 July 2020.

doi: 10.21037/fomm-2020-mr-03


Head and neck microsurgical reconstruction has evolved in the last two decades with the development and popularization of virtual surgical planning (VSP) and computer-aided design and manufacturing (CAD-CAM). Optimal mandibular reconstruction following oncological resections requires microvascular free flaps such as fibula or iliac crest. Fibula-free flap is nowadays considered the gold standard for mandibular reconstruction (1). Its abundance of bone stock, pedicle length and minor donor-site morbidity make it suitable due to its versatility and reliability (2,3).

When reconstructing a mandible due to oncological or traumatic defect, the traditional free-hand technique requires high-precision skill for hand-crafting the bony flap to for adequate adaptation to the defect. This can be time-consuming in complex defects that require multiple osteotomies to fully restore the curvature of the mandible and can also frequently lead to imperfect outcomes at both functional and aesthetical levels (4-6).

Application of VSP and CAD-CAM to bone free flaps has improved the precision of oncological margins and better flap segmentation and modelling. As a consequence, operating time is reduced and better aesthetic results are achieved.

In our unit, VSP and CAD-CAM is applied to every bone graft requiring complex segmentation and modelling. The objective of this article is to present our methodology, and describe the recommendations and disadvantages that have found from our experience.

Methodology: step-by-step

Although the utilization of VSP and CAD-CAM can differ between centers, the following steps are commonly used. Slight differences in application of the technology may be found between institutions. Since the fibula flap is the most widely used in mandibular reconstruction, we have chosen this as the model for the present article. Nonetheless, the principles and steps for execution are readily applicable to other bony microvascular free flaps such as iliac crest or scapula.

First, if a free fibula flap is chosen for a mandibular reconstruction, a high-resolution Angio-CT (1-mm cuts) of the facial skeleton and lower extremities should be obtained. Images should be obtained no more than 3 weeks before the surgery (2 weeks is considered optimal) in order to enhance the accuracy of oncological margins and prevent potential extirpative errors. Images of lower extremities should confirm the permeability of the three vascular axes of the legs. All the imaging tests are sent to the modelling company designated to create the VSP.

A web conference is then scheduled approximately 2 weeks before the surgery. A biomedical engineer from the company, the reconstructive surgeon and extirpative surgeons are always present to discuss each case. First, virtual resection of the tumor is conducted according to the indications of the extirpative surgeons. If desired, mandibular cut-guides are designed. Once the mandibular defect has been virtually created, reconstructive surgery recreates the new mandible with the fibula. Some important decisions should be made at this point: (I) laterality of donor fibula and orientation of the flap to prevent pedicle malposition; (II) osteotomies needed to recreate the mandible contour and osteosynthesis needed to secure the flap (miniplates vs. single plate; (III) location for placement of endosseous implants if previously decided. Whilst in the traditional technique, all these decisions were made by eye during surgery, the most notable difference with VSP is the possibility of producing a tridimensional design of the fibula osteotomies, which allows for finally recreating the native mandibular shape with greater accuracy. Based on the decisions described, a cutting guide for the fibula can then be designed, and the osteosynthesis plate or miniplates can be virtually modelled (Figures 1,2).

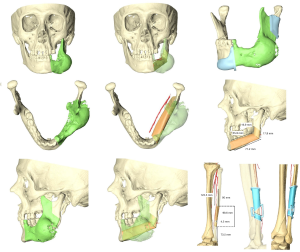

Figure 1 Case 1. VSP for a 58-year-old male patient diagnosed of squamous cell carcinoma of alveolar ridge that deeply infiltrated almost all the mandibular bone. Resection was planned with 2 cm of healthy bone margin. A three-segment fibula flap was designed for suitable reconstruction of the defect. VSP, virtual surgical planning.

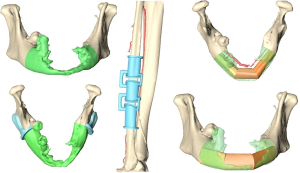

Figure 2 Case 2. A 45-year-old man diagnosed of giant cell granuloma. VSP was performed. One cm of healthy bone margin was planned. A two-segment fibula flap was designed for reconstruction of the defect. Mandibular and fibula cut guides were prepared. VSP, virtual surgical planning.

The next phase involves the creation of 3D models. It usually takes the modelling company between 7 and 10 days to deliver these to the hospital. When dealing with complex reconstructions (large resection of anterior mandible, delayed reconstruction after radiotherapy, etc.) we usually order stereolithographic models, mandibular cut guides to assure accuracy during ablative surgery, and fibula cutting guides and a pre-bent reconstruction plate to reduce modelling time and improve aesthetic outcomes. In less complex cases, only stereolithographic models and mandibular cutting guides are ordered. Fibula osteotomies are more intuitive and plate modelling is easily hand-bent over the stereolithographic model (Figure 3).

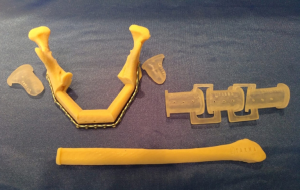

Figure 3 Case 1. Stereolithographic models, mandibular and fibula cut guides and pre-bent osteosynthesis plate obtained by CAD-CAM. CAD-CAM, computer-aided design and manufacturing.

Surgery is carried out in a single step by two surgical teams. Mandibular resection is guided by predesigned cut splints attached to the mandible by a unicortical screw. Fibula flap harvest is made following the traditional technique except that that fibula cutting guides are fixed with a unicortical screw and osteotomies are carefully made with piezosurgery before clamping the pedicle. Thus, flap ischemia time is considerably reduced in comparison with the traditional hand-modelling technique.


  • When VSP is carried out with imaging tests obtained more than 3 weeks before the surgery, there is a high risk of making an error when designing the surgical margins. This could be rectified during the surgery by discarding all the virtual reconstruction planning. Otherwise, inadequate surgical margins would be obtained, thereby compromising oncological outcomes.
  • Meticulous evaluation of lower-limb CT angiography should be carried out before VSP web conference. We recommend checking the permeability of the three vascular axes of the leg. Vascular abnormalities presence such as peroneal arteria magna may preclude the use of that side fibula due to the high risk of lower-limb ischemia
  • Positioning of the cutting guides is critical during surgery. A perfect fit is essential in order to ensure that the virtual plan translates to the surgical setting. Bone exposure some centimeters beyond the location of the osteotomies is needed to effortlessly place and fix the guides. Fixation with unicortical screws allows for the subsequent use of the same holes for definitive plate fixation with bicortical screws (Figure 4).
    Figure 4 Case 2. Intraoperative photographs of the tumor resection. On the left, mandibular cut guides positioned. On the right, tumor resection as planned in virtual surgery.
  • Due to the weakness of the acrylic material used for the cutting guides, manipulation should always be performed with extreme care. All surgery team members, including nurses, should be instructed in advance. Fracture of these pieces could result in the miss-adaptation of the guides and a loss of cut accuracy (Figure 5).
    Figure 5 Case 2. Intraoperative photographs of the fibula free flap harvest. Excessive pressure screwing the cut guide produced a fracture of the proximal segment. Piezosurgery is a useful tool to prevent damage to the pedicle during osteotomies. Modelling and fixation of the fibula segments is performed before clamping the pedicle.
  • Cutting guide slots are usually wider than the saw. Unnoticed erroneous angulations of the cuts are allowed. When multiple cuts are required, accumulation of minor angulation mistakes can lead to the mismatch of bone fragments during osteosynthesis. In our experience, asking the VPS/CAD-CAM company for narrower cut-guide slots, in addition to using piezosurgery, can help to achieve more accurate cuts (Figure 5).
  • Although not mandatory, in virtual planned cases some reconstructive microsurgeons prefer to perform osteotomies and osteosynthesis prior to clamping the pedicle and extracting the flap. Extreme care should be taken during saw manipulation and flap modelling to prevent damage to the pedicle. To the best or our knowledge piezosurgery osteotomies are more precise and safer, minimizing ischemia time without the risk of pedicle injuries (Figure 5).


  • Cleaner surgical margins;
  • Decrease in ischemia and total operative time;
  • More aesthetic and functional outcomes.


  • Increased presurgical (virtual planning) time;
  • Increased economic costs;
  • No improvement in postoperative complication rates.


Free bone-flap conformation with respect to native mandibular contour is one of the most challenging issues in mandibular reconstruction. The introduction and subsequent popularization of 3D VSP has responded to the need for reconstructive surgeons to have a tool for improving the functional and aesthetic outcomes of their patients (Figure 6). Reconstructive accuracy is probably the most controversial outcome. Most reconstructive surgeons agree on the benefits offered by VSP and CAD-CAM when it comes to accomplishing high-precision reconstructions, particularly in cases of high complexity that require two or more osteotomy segments. In this regard, there are a number of studies that report statistical evidence. Several methods have been used to evaluate the accuracy of reconstruction, including condyle and gonial shift, differences between intergonial and gonial angles, or condyle-gonion and gonion-gnathion distances. These parameters of the remaining mandible and fibula segments have been compared pre- and postoperatively with an optimal outcome defined as either the virtual planned ideal outcome or a mirrored contralateral side. Even though authors such as Hanasono et al., Bouchet et al., Weitz et al. or De Maesschalck et al. have demonstrated a significant increase in accuracy when using CAD-CAM mandibular reconstruction compared with free hand mandibular reconstruction, the absence of a standardized procedure for assessing the accuracy of the methodology (anatomical landmark, time of postoperative CT scan, etc.) impedes the ability to obtain homogenous statistical significance (7-10). Authors such as Chang et al., however, argue that optimal accuracy outcomes can be achieved without VSP (11). To the best of our knowledge, the skills of an experienced surgeon make VSP unnecessary in cases of low-complexity reconstruction that require only one osteotomy.

Figure 6 Case 2. Comparison between VSP and clinical and radiological outcomes. VSP, virtual surgical planning.

One of the most widely studied issues in VSP is undoubtedly the reduction in ischemia and operative time. Simplification of bone graft cutting, molding, setting and fixation all have a direct impact on reconstructive surgery time (8,12-14). Moreover, the possibility of shaping the fibula before dividing the pedicle also minimizes ischemia time (8,12-16). Since reconstructive surgery time is reduced with VSP, this also shortens total operative time. Unfortunately, there are no studies that provide strong statistical evidence regarding the impact of VSP on postoperative clinical outcomes, including length of hospital stay.

Reconstructive microsurgeons are always concerned about major postoperative complications such as flap loss, fistula, or infection (9,13,17,18). Postoperative complication rates in VSP mandibular reconstructions have been reported in several studies. Whilst some studies have observed lower complication rates in computer-assisted reconstructions, two meta-analyses conducted by Powcharoen et al. and Tang et al. found no statistically significant differences in these outcomes when comparing VSP free flap reconstructions with conventional procedures (19-22).

High cost is the main disadvantage of using VSP and CAD-CAM technology. To the best or our knowledge, only two studies have investigated the economic viability of computer-assisted reconstructions (19,23). Although this technology can be more cost-effective when using freely available open source software, a specialized medical company is usually contracted for this purpose. In the US, the direct costs of each VSP and CAD-CAM mandibular reconstruction vary between $3,000 and $12,000 per case depending on the company and hardware ordered (7,24). There are currently no clear estimates of the economic savings derived from reducing total operative time when using this technology. In the US, the cost per minute of each operating room is estimated to be between $50 and $100 (25). Therefore, any increase in efficiency could potentially offset the costs of this technology. However, health insurance coverage and costs related to operative time vary between countries and health centers. Furthermore, VSP ablative surgery could reduce the need for medium and long-term oncological treatments, although further research is needed in this field. It is expected that the current popularity of CAD-CAM software will increase the competition among VSP companies in the future, and thus drive down the costs of this technology.


The VSP and CAD-CAM technology is here to stay. The accuracy assured by this technology when performing complex reconstructions, and the efficiency in reducing ischemic time, reconstructive time, and total operative time make of this technology a powerful tool that can be used by experienced reconstructive microsurgeons. The high costs incurred can be outweighed by the economic savings resulting from a reduction in operative time. Prospective, randomized controlled trials are required to definitively assess the accuracy of this technology in comparison with free-hand reconstructions and establish the basis of indication protocols for computer-assisted reconstruction. Our recommendation is to use a case-by-case evaluation to select those patients for whom VSP will help to obtain the best aesthetical and functional outcomes.


The authors would like to acknowledge Eric Wizauer for critical assistance with image procurement and figure development.

Funding: None.


Provenance and Peer Review: This article was commissioned by the Guest Editor (Paolo Cariati) for the series “Microvascular reconstruction of head and neck oncological defects—state of the art” published in Frontiers of Oral and Maxillofacial Medicine. The article has undergone external peer review.

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at The series “Microvascular reconstruction of head and neck oncological defects—state of the art” was commissioned by the editorial office without any funding or sponsorship. The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See:
