Osteoradionecrosis (ORN) following radiation therapy is a much-feared complication of the treatment of head and neck cancer. As currently defined, ORN is an area of exposed, devitalized irradiated bone that fails to heal over a period of 3–6 months in the absence of local neoplastic disease (1). The incidence varies from 2% to 37% depending on the series quoted. Nabil and Samman estimated the risk as being 2–7% with hyperfractionation and mandible lesions showing elevated risk. Studer et al. found that in the mandible, marginal or periosteal resection as carrying the highest risk in post-surgical patients. They also identified radiation doses greater than 60 Gy as the threshold at which ORN developed in the mandible (2). The severity of the condition can range from loss of soft tissues with spontaneous recovery to exposure of necrotized bone for 6 months or more, infection, disabling trismus, persistent pain, skin fistulae and pathological fracture. Early stage ORN can be managed conservatively, aiming to limit progression with medical therapy [antibiotics, pentoxifylline-tocopherol, hyperbaric oxygen (HBO)] and limited surgery. There is general agreement that the most severe cases are best managed surgically with free flap reconstruction replacing the necrotic and poorly vascularized tissues (3).
The aims of resection and free flap reconstruction can be described as three-fold: curative, with resection of the diseased tissue; functional, by restoring articulation, mastication and swallowing; and esthetic (3).
Free flap reconstruction in the ORN patient has specific challenges for the surgeon. First of all, it is important, that the possibility of recurrence of neoplasm is ruled out. The surgeon is then faced with a hostile surgical environment with scarring, fibrosis and local infection and or bacterial colonization. Vessels for anastomosis may depleted from previous neck dissection or vascular anastomosis and may exhibit various degrees of radiation damage. Finding appropriate recipient vessels for anastomosis can be challenging and preparing them may be difficult. Friendlander et al. found that radiation doses sufficient to cause ORN can result in atherosclerotic lesions in vessels as large as the carotid. The use of vessels from the contralateral non-irradiated neck has been suggested by some surgeons (3,4).
From 2014 to 2020 the Head and Neck Microvascular unit of the Oral and Maxillofacial Surgery department at Jackson Health/University of Miami treated 149 stage 3 or advanced ORN patients with free flap reconstruction. In this paper we present our approach to reconstruction in these patients and the lessons we have learned.
Clinical examination is key successful free flap surgery in the ORN patient. The following should be noted and recorded in the assessment.
- Presence of fistulas or obvious infection;
- Degree of fibrosis and scarring in the neck;
- Whether facial hair growth is noted in the planned anastomotic field;
- Presence of trismus, or pathological fracture;
- Decrease or loss of sensation of the lower lip or chin.

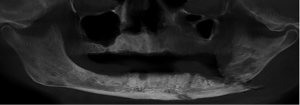

Significant radiation damage of the bone and the overlying soft tissue (Figures 1,2).
It is extremely important that recurrent malignant disease is ruled out with biopsies if necessary as up to 3.4% of ORN resection specimens may contain malignancy (3). The patient should be optimised with antibiotics to control infection, as well as oral hygiene.
A good computed tomography (CT) of the facial bones is essential in visualizing the anatomy of the operation field as well as delineating the extent of the ORN. At the University of Miami we use either high resolution cone beam CT or medical grade CT.
It is not our usual practice to routinely order a CT angiogram of the neck vasculature in ORN patients. We have found that this imaging modality often flatters to deceive with “good vessels” on the scan sometimes demonstrating poor calibre and flow or significant atherosclerosis under the microscope. We do however advocate for computed tomography angiography (CTA) in the neck that has been subjected to multiple operations or is clinically “woody” hard on examination.
Perioperative care planning
Airway management, and patient nutrition should be planned before the operation. It is our preference to determine whether the patient will have a tracheotomy or percutaneous endoscopic gastrostomy (PEG) tube at the office planning visit. Dysphagia and trismus are common complications in radiotherapy of the head and neck, and the degree to which these will be issues should be determined and planned for prior to the free flap surgery. Where possible, we prefer to have PEG tube placement performed prior to the free flap with the tracheotomy performed on the day of surgery.
Where patients have scheduled medical treatment for their ORN (pentoxifylline-tocopherol, antibiotics) these should continue until the day of surgery. The decision on whether to continue treatment post operatively depends on whether we suspect that there are other at-risk areas that are out of the planned resection field.
Virtual surgical planning

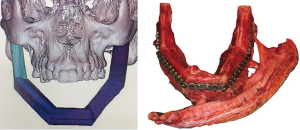

The authors use virtual surgical planification where practical. At our institution we have found that virtual surgical planning significantly decreases operating time as well as aids in planning the resection and inset (Figure 3).
Surgery in the irradiated neck
We prefer to use a two-team approach as this decreases the total operating time, and mitigates surgeon exhaustion.
Identification of the vessels for anastomosis is done as early as possible. They are prepared minimally, due to their susceptibility to injury. It is best to identify primary as well as secondary options for vascular anastomosis. Where possible utilise the ipsilateral neck vessels. Consider using vessels in the contralateral neck in the following circumstances:
- Infection and fistula in the ipsilateral neck;
- Excessive fibrosis and a “woody hard” ipsilateral neck.
It is preferable to complete vessel preparation and ablation of the diseased tissue prior to division of the flap pedicle at the flap harvest site. The flap pedicle is divided in manner so as to create as much slack as possible in the neck, avoiding tension in the vessels on anastomosis and more importantly when the patient subjects the neck to the normal range of motion (Figures 4,5).
Avoiding vessel trauma is the key to success. We avoid using double micro-clamps to minimize vessel trauma. The vessels should be handled with care avoiding stretching and excessive dilatation with micro instruments (this minimizes intimal tearing).
We utilize the “posterior wall first-continuous interrupted-airborne (PCA) technique” combining three different techniques for vessel anastomosis. We have found that performing “posterior wall first”, continuous interrupted and airborne, is less traumatic to the vessels and also decreases the anastomosis time significantly. Performing the posterior wall anastomosis first eliminates the need to turn the micro-clamps over. The continuous interrupted suture allows for visibility of the lumen throughout the anastomosis preventing “back walling” of the suture as well as trauma to the vessel. Finally, the “airborne” tying technique decreases the suture tying time. The anastomosis is performed in an “in” to “out” direction to minimize the risk of intimal separation.
Where a patient has been on anti-platelet medication (aspirin or clopidogrel), continue on these medications post operatively. In cases of severe atherosclerosis we administer 3,000 units of intravenous (IV) heparin 5 minutes prior to harvest.
From 2014 to 2020 the Head and Neck Microvascular unit of the Oral and Maxillofacial Surgery Service at Jackson Health/University of Miami treated 149 ORN patients with free flap reconstruction.

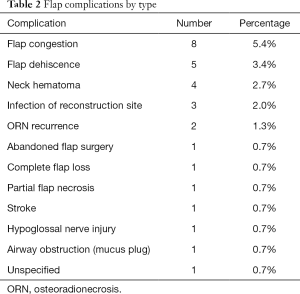

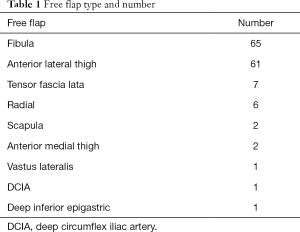

The fibula free flap (n=65) and anterior lateral thigh free flap (n=61) were the workhorse flaps in our series comprising 44% and 41% of the total flap surgeries. A total of 13 cases (8.7%) involved performing 2 flaps in the same operation. Thirty cases had recorded complications (20.1%) with one flap loss (0.7%) and one case of partial necrosis (0.7%) of the flap. The most common complications encountered were flap congestion with 8 cases (5.4%), 5 cases of flap dehiscence, 4 cases of neck hematoma (2.7%) and 3 cases of infection of the flap reconstruction site (2.0%). The average length of stay was 8.2 days (Tables 1,2).
Free flap surgery in the ORN patient has significant challenges. Previously performed neck dissection by itself has a strong correlation with free flap loss, wound infection and microvascular revision (5). Previous irradiation of the neck is independently associated with infection and free flap loss. The ORN free flap patient will usually have had a neck dissection and may indeed have wound infection.
Benatar et al. reviewed the impact of pre-operative radiation on free flap reconstruction in the head and neck (5). A total of 136 cases with previous radiotherapy were included in their series. The rate of flap failure recorded was 14% with patient death at 3%. Their series noted a local complication rate of 40% in the head and neck free flap with the most common complications noted being fistula (23%), hematoma (21%)and infection (7%). Average length of stay in their series was 27 days. These outcomes were considerably worse where patients with more than 60 Gy of radiation treatment had been given. In this cohort flap failure was 21% with death at 4%. Local complication rates were 57% with the most common being fistula formation (43%), infection (36%) and hematoma (21%). Length of stay in this cohort was 41 days.
Zaghi et al. recorded 73 cases of free flap reconstruction over their 17-year series (6). They recorded no free flap failures and a partial necrosis rate of 2.7%. Major complications (resulting in increased length of stay greater than 20 days) were 8 cases (11.0%). Minor complications were 21 cases (28.8%). Average length of stay in their series was 12 days.
Patients in our series performed considerably well in comparison to the outcomes recorded in the literature. All but four of the 149 patients received total doses over 50 Gy. The free flap success rate was over 98%. Free flap surgery was abandoned in one case where no suitable vessels were identified in the neck for anastomosis. The single case of flap loss was in a patient with a vessel deplete neck, and multiple medical comorbidities. The same patient also sustained a stroke. This case is a particularly good illustration of the potential risks involved in surgery in these complex patients.
ORN is an increasing indication for free flap surgery. Though this surgery is complex and has greater risks than free flap surgery in the “virgin” neck, our experience demonstrates that good outcomes can be achieved consistently with a structured approach.
