Surgery first: current state of the art orthognathic surgery and its potential as a primary treatment modality in obstructive sleep apnea with concurrent dentofacial deformities

Introduction

Orthognathic surgery is an effective treatment modality in patients with either dentofacial deformities (DFD) or obstructive sleep apnea (OSA). The concept of orthognathic “surgery first” has been discussed in the literature and employed in practice for quite some time for the management of DFD. Due to advancements in three-dimensional planning, it is being utilized more in patients with DFD resulting in an overall decrease in treatment time (1-3). As orthognathic surgery is a treatment modality for multiple conditions, it should be explored more in the subset of patients with concurrent DFD and OSA. The purpose of this paper is to highlight the rationale to employ orthognathic surgery as a primary treatment modality in patients with concurrent OSA and DFD. A brief review of OSA and two cases of DFD in which the surgery first approach (SFA) was applied will be discussed. We present the following article in accordance with the AGREE reporting checklist (available at https://fomm.amegroups.com/article/view/10.21037/fomm-21-61/rc).

Definitions

DFD are conditions impacting the normal proportions of the facial skeleton and occlusion. Maxillomandibular abnormalities not only affect functional aspects, it impacts psychological and esthetic factors as well. OSA belongs to a group of disorders ranging from habitual snoring to moderate or severe obstructive sleep apnea syndrome (OSAS) which is characterized by the cyclic cessation of breathing and or hypopnea during sleep (4). Key features of OSAS are daytime hyper-somnolence and polysomnography proven obstructive apneas (5).

SFA is the orthognathic surgery performed prior to orthodontic preparation (6).

Epidemiology

DFD affect close to 20% of the population in various degrees of occlusion and function. OSA is estimated to impact between 27% and 43% of women and men respectively (7). OSA patients are usually older and have multiple comorbidities compared to patients undergoing orthognathic surgery for DFD (8). In the United States, DFD contributing to malocclusion which require surgical correction is estimated to be 2.7% (9).

Etiology

Malocclusion and associated skeletal abnormalities of the face are due to numerous factors including genetics, prenatal problems, obesity, systemic conditions that occur during growth, trauma, and environmental influences (9). The etiology of OSA relates to inspiratory airway pressures that overcome muscular forces opposing airway collapse. During sleep, relaxation of the upper airway tongue and pharyngeal muscles results in airway narrowing (4). In order to maintain a patent airway during inspiration, the genioglossus muscle is activated at the same time as the inspiratory muscles. In OSA, activation of the genioglossus is reduced which (10) leads to apneic and hypopneic events and in turn results in fragmented sleep (4). Risk factors associated with OSA include anatomically narrowed airway, high blood pressure, asthma, obesity, smoking and diabetes.

Pathology

The pathophysiology of OSA relates to sporadic hypoxia and recurring nighttime arousals which disrupt the sleep cycle. This causes increased sympathetic activation and oxidative stress which contributes to development of endothelial dysfunction, increased platelet aggregation, coronary artery disease, heart failure, metabolic syndrome and cerebrovascular accidents (11). Hypoxia can cause pulmonary vascular remodeling resulting in pulmonary hypertension and right ventricular hypertrophy (12). Of note, studies show a higher mortality rate among OSA patients with concomitant cardiovascular disease (13).

Clinical presentation

OSA patients may or may not show good facial proportions. Computerized tomography (CT) scans or lateral cephalograms may demonstrate decreased upper airway space. However, most imaging is not taken in the supine position and therefore not the best indicator of decreased airway space. The mandibular plane to hyoid distance is a predictor of OSA. The upper airway can be approximated by measuring the distance from the mandibular plane to the hyoid. It’s thought that lower-set hyoid bones correlate to soft tissue laxity and airway collapse (14).

In general, OSA patients have reduced slow wave sleep leading to symptoms of daytime somnolence, morning headaches, poor concentration, memory loss and depression which in turn can cause marital discord and increased risk of car accidents (4).

Diagnosis

An abnormal apnea-hypopnea index (AHI) is necessary for disease classification and is diagnosed by a sleep physician. OSA severity is based on the number of apnea and hypopnea’s occurring per hour of sleep. OSA is classified as mild if the AHI is 5–15, moderate 15–30 and severe if greater than 30 (15). Severe OSA occurs in 10–20% of patients with a BMI greater than 35 (16). Apnea and hypopnea’s observed on polysomnography is the current gold standard for diagnosis of OSA (17). Airway collapse can be visualized on sleep endoscopy (18).

The literature mentions several craniofacial traits that are common in patients with OSAS. These include “bimaxillary retrusion, mandibular deficiency, short cranial base, reduced cranial base angle and mandibular length, increased lower anterior facial height, inferiorly positioned hyoid and an enlarged soft palate” (19). Mandibular deficiency in relation to the maxilla is the most common skeletal abnormality predisposing to OSA (20).

Management of OSA

Normalization of the AHI is a key treatment objective, however studies indicate permanent neuroanatomic effects of OSA in some patients (21). As well, it is worth noting that up to 22% of people have residual hypersomnia after normalization of the AHI with positive airway pressure therapy (22,23).

Continuous positive airway pressure (CPAP) is considered the “gold” standard for OSA treatment. It is effective when used properly, however, effectiveness is low due to poor patient adherence. Surgery for OSA does not rely on long-term patient adherence and long-term results have been shown to be successful (4). Patients likely to benefit from maxillomandibular advancement (MMA) are those with true anteroposterior collapse of the airway and decreased airway space. MMA should be carefully planned in order to optimize aesthetics, prevent excessive incisor show and excessive protrusion of the lower facial third. These considerations are even more important in OSA patients with concurrent DFD.

Airway narrowing patterns have been classified in the following manner: type I collapse involves narrowing of the retropalatal region; type II includes narrowing or collapse of both the retropalatal and retrolingual areas; and type III collapse occurs only in the retrolingual area. MMA improves patency of both retropalatal and retrolingual spaces (24).

In regards to OSA, surgical candidates include adult’s intolerant to CPAP and oral appliances or those whose anatomical features impair proper fit, as well as adults with anatomical narrowing of the pharynx (e.g., macroglossia, retrognathia) and adults who refuse to use a CPAP device (25).

Alternatives to MMA primarily involve soft tissue rather than bony surgery and include uvulopalatopharyngoplasty, hyoid suspension, epiglottoplasty, and implantable neurostimulation devices (26).

3D imaging techniques and virtual surgical simulations have greatly improved surgical predictability and outcomes. Cone beam computerized tomography (CBCT) imaging (27,28) and 3D intra-oral scans (29,30) have allowed for easy image capture, 3D segmentation and also visualization. In addition, Orthodontists and Oral Maxillofacial Surgeons may now communicate on web-based platforms for better communication of the surgical plan (31) and planning the final occlusion (32). Finally, 3D manufacturing of the surgical wafers and splints transfer the necessary information from the plan to the surgical table (33).

Case 1

A 46-year-old man presented at the Department of Orthodontics, University of Alabama at Birmingham for consultation. After extensive exploration and summarizing findings, patient received a diagnosis of Skeletal Class II malocclusion and his medical condition included OSA. Clinical evaluation exhibits lip competence with minimal gingival display at smiling. The patient had a retruded chin with no significant facial asymmetry giving the appearance of a concave profile.

Intraorally, his mandibular third molars were present. He had high palatal vault, rounded maxillary and mandibular arches, maxillary dental spacing and mild lower crowding (Figure 1). Only permanent teeth are present, mandibular left first molar and maxillary third molars are missing (Figure 2). His upper and lower dental midline was not coincident due to the mandibular dental crowding. A SFA was planned to conclude with orthodontic treatment (Figure 3 and Table 1).

Figure 1 Initial extraoral and extraoral photographs after surgery first approach. These images are published with the patient’s consent.

Figure 2 Panoramic radiograph as part of the pretreatment records.

Figure 3 Cephalometric tracing before surgery first approach/SFA. SFA, surgery first approach.

After orthognathic surgery, 0.018×0.018 NiTi archwires were placed on both arches along with Class III elastics (Figure 4).

Figure 4 Extraoral and intraoral photographs during orthodontic treatment after surgery first approach/SFA. These images are published with the patient’s consent. SFA, surgery first approach.

Subsequently, 0.016×0.022 NiTi wires were changed and the case was finished on 0.014×0.018 NiTi archwires. The overall treatment time was 11 months from start to finish (Figures 5,6). Retention protocol: upper and lower Essix retainers.

Figure 5 Final photographs. These images are published with the patient’s consent.

Figure 6 Post-treatment (A) lateral cephalogram and (B) panoramic radiograph.

Case 2

This 63-year-old female presented with OSA. Extensive examination reveals a concave profile, Class III molar relation, moderate crowding of lower anterior teeth, dental midlines matching and ovoid maxillary and mandibular arches (Figures 7 and 8). The extraoral examination revealed her upper and lower lips to be retrusive according to the E-plane. Lower lip is positioned −7.7 mm whereas her upper lip is at −9.3 mm relative to the Rickett’s E-plane (Figure 9 and Table 2).

Figure 7 Initial extraoral and extraoral photographs. These images are published with the patient’s consent.

Figure 8 Initial panoramic radiograph.

Figure 9 Cephalometric tracing before surgery first approach/SFA. SFA, surgery first approach.

Bimaxillary surgery with surgery-first approach was performed and immediate movement of the teeth with orthodontic treatment started after surgery considering the regional acceleratory phenomenon (34). Overall treatment last for approximately 11 months.

After orthognathic surgery, 0.014 NiTi wires were placed on both arches along with Class II elastics (Figures 10-12).

Figure 10 Postsurgical extraoral and intraoral photographs after surgery first approach/SFA. These images are published with the patient’s consent. SFA, surgery first approach.

Figure 11 Postsurgical panoramic radiograph.

Figure 12 Postsurgical cephalometric radiograph.

Subsequently, 0.016×0.022 NiTi wires were changed and the case was finished on 0.018×0.018 stainless steel archwires. The overall treatment time was 11 months from start to finish (Figures 13,14). Retention protocol: upper Essix retainer and lower fixed retainer.

Figure 13 Final extraoral and intraoral photographs. These images are published with the patient’s consent.

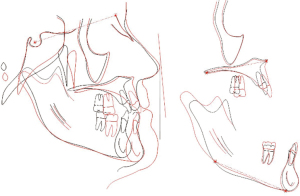

Figure 14 Cephalometric superimpositions: black line, pretreatment; red line, posttreatment.

The cases showed in this paper, where patients with OSA, provide examples of well-achieved outcomes from the aesthetics, function and satisfaction standpoint. The patients benefitted in a short time after surgery and orthodontic treatment without compromising the results. Proving that the surgical first approach can be an effective treatment modality for patients with OSA.

All procedures performed in this study were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patients for publication of this article and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.

Discussion

The literature shows all malocclusions and DFD are amenable to the SFA. Advantages of this treatment modality include immediate resolution of the dentofacial deformity, easier decompensation of the malocclusion after surgery and significant reduction in therapy time. A 2014 systematic review reported treatment duration was approximately less than a year (35).

Orthognathic surgery for DFD and OSA has undergone significant philosophical change. Research is focusing on the patient phenotype most likely to benefit from orthognathic surgery versus other surgical options. Customized treatment plans based on the dentofacial deformity and locations of airway obstruction can target the etiology more effectively. Proper manipulation of skeletal components can effectively improve quality of life and sleep for patients (36).

As mentioned, elevations in AHI correlate with elevated risk of cardiovascular sequelae, symptoms, and neurocognitive effects (37). Studies have shown that improvement in AHI decreased all of the above (38,39). Reduction in OSA through orthognathic surgery will likely decrease these adverse events highlighting why definitive management of OSA through a SFA should be considered as a primary modality.

For patients with combined skeletal deformities and OSA that requires MMA, it is important to consider total treatment length. For DFD, the overall orthodontic treatment period for the conventional approach ranged from 22 to 36 months, compared to SFA which ranged from 10 to 14 months (1-3), through the regional acceleratory phenomenon.

Although the concept of a SFA was introduced decades ago, imaging was limited to two-dimensions. With advancements of three-dimensional imaging, prediction of surgical outcome is more accurate, especially in OSA patients (40). Uribe et al. showed favorable esthetic and occlusal outcomes after surgical correction of facial asymmetry with the SFA (41).

Conclusions

Based on our experience with decreased total treatment time for patients undergoing combined orthodontic and orthognathic surgery for correction of DFD, the authors believe patients who phenotypically have a decrease in anterior-posterior facial dimensions resulting in a combination of dentofacial facial deformity, malocclusion and OSA should be considered for SFA management. This would be accomplished best through close collaboration between the orthodontist, sleep medicine specialist and OMFS to identify and plan treatment for this subset of patients.

From the literature and included case reports, it can be deduced that patients with concurrent DFD and OSA due to skeletal deficiency may be managed more effectively (i.e., length of treatment and overall results) via a SFA. This highlights a need in the literature to evaluate overall outcomes in patients with concurrent DFD and OSA who are treated via a SFA. Important metrics would include total treatment time, improvement in AHI and morbidity, as well as a subjective assessment of QOL changes.

Acknowledgments

Funding: None.

Footnote

Reporting Checklist: The authors have completed the AGREE reporting checklist. Available at https://fomm.amegroups.com/article/view/10.21037/fomm-21-61/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://fomm.amegroups.com/article/view/10.21037/fomm-21-61/coif). CHK serves as an unpaid editorial board member of Frontiers of Oral and Maxillofacial Medicine from July 2020 to June 2022. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures performed in this study were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patients for publication of this article and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
