Botulinum toxin (Botox)

Introduction

Botulinum toxin (Botox) is derived from a gram-positive anaerobic bacteria Clostridium botulinum. There are seven different serotypes (A–G) with a biological effect on neurotransmission. The mechanism of action of Botox involves the following four basic steps:

• Binding of Botox on neuronal presynaptic membrane via synaptic vesicle protein 2 (SV2) and/or synaptotagmin depending on the serotype;
• Internalization of the Botox via endocytosis;
• Translocation of Botox from the endocytosed vesicle to the neuronal cytosol;
• Cleavage of specific proteins involved in neuroexocytosis including SNAP-25 cleaved by Botox A, E and C; VAMP/synaptobrevin cleaved by Botox B, D, F and G; and syntaxin cleaved by Botox C.

The net result of cleavage of these proteins is inhibition of the formation of the soluble N-ethylmaleimide-sensitive factor attachment protein receptors (SNARE) which are critical for the fusion of the acetylcholine (Ach) containing synaptic vesicles to the presynaptic neuronal membrane. This effectively prevents the release of Ach from the motor endplate at the neuromuscular junction. The net result is muscle paralysis that persists until the internal neuronal proteins (SNAP-25, VAMP and syntaxin) are regenerated over the following 3–6 months.

Botox was originally thought to reduce orofacial pain through inhibition of muscle activity. Current evidence suggests that Botox also possesses analgesic properties as a result of its ability to inhibit the release of substance P (SP), calcitonin gene-related peptide (CGRP) and transient receptor potential (TRP) vanilloid receptor type 1 (TRPV1). This translates into reduced pain and neurogenic inflammation in the peripheral and central nervous system (CNS). This maybe synergistic with the ability of Botox to block neuromuscular transmission.

General indications

Although Botox was initially approved by the FDA in 1989, the list of approved indications has grown to include overactive bladder, headaches, spasticity, dystonia, blepharospasm and hyperhidrosis. It can be administered using an intramuscular or intradermal technique. The use of electromyographic (EMG) monitoring during intramuscular injection is beneficial to facilitate location of motor endplates during injection. The maximum dose for adults is 400 units in a 3-month period or the lesser of 300 units or 8 units/kg for pediatric patients. The dose of Botox for any given patient is dependent on the indication for which it is being used. Complications following the use of Botox are exceedingly rare but may include distant spread resulting in asthenia, generalized muscle weakness, diplopia, ptosis, dysphagia, dysphonia, dysarthria, urinary incontinence and breathing difficulties. Botox should not be used in patients with an allergy to Botox or with overlying skin infections.

Orofacial pain can have multiple sources which make diagnosis and treatment challenging. Although temporomandibular disorders (TMD) is a non-specific term, the Diagnostic criteria for temporomandibular disorders (DC/TMD) provides a useful approach to classifying sources of pain within TMD. Axis I describes pain sources and is divided into arthrenous and myogenous sources.

The arthrogenous sources of pain relate to the temporomandibular joint include:

• Arthralgia;
• Disc displacement with reduction;
• Disc displacement with reduction and intermittent locking;
• Disc displacement without reduction with limited opening;
• Disc displacement without reduction without limited opening;
• Degenerative joint disease;
• Subluxation.

The myogenous sources of pain relate to the masticatory muscles and include:

• Myalgia;
• Local myalgia;
• Myofascial pain;
• Myofascial pain with referral;
• Headache attributed to TMD.

In addition the DC/TMD advocates for the use of screening tools and validated questionnaires to identify Axis II diagnoses such as adverse pain behavior, psychological issues and psychosocial functioning. These factors predict the response to treatment for Axis I diagnoses. It is also important to note that patients presenting with TMD may also suffer from cervical pain, migraine, bruxism, orofacial dystonia, trigeminal neuralgia (TN), fibromyalgia and irritable bowel syndrome. Botox may be beneficial for some of these conditions.

Administraion technique

Botox comes as a 50-, 100- and 200-unit vial. It needs to be reconstituted with sterile normal saline. Typically this requires the addition of 1, 2 or 4 mL of NS for the 50-, 100- and 200-unit vials, respectively. This results in a uniform concentration of 5 units of Botox per 0.1 mL. Vials are single use and should be used within 24 hours of reconstitution. Reconstituted vials should be stored at 4 ℃ if not used immediately after preparation. The injection site for muscles should target the anatomical location of the greatest density of motor endplates.

Indications in oral and maxillofacial surgery

Chronic migraine

Chronic migraines are defined as headache ≥15 days per month with headache lasting more than 4 hours. Botox has been shown to reduce the frequency and intensity of headaches (1-4). The exact mechanism of action is unclear. One thought is that Botox reduces the mechanical sensitivity of cranial muscle nociceptors secondary to reduced glutamate and CGRP. Another potential mechanism is the reduction in SP and CGRP within the trigeminovascular system. There are specific muscles and injection sites that have been shown to be beneficial (Figure 1).

Figure 1 Injection sites for migraines. A, corrugator (10 units divided at 2 sites); B, procerus (5 units at 1 site); C, frontalis (20 units divided at 4 sites); D, temporalis (40 units divided at 8 sites); E, occipitalis (30 units divided at 6 sites); F, cervical (20 units divided at 4 sites); G, trapexius (30 units divided at 6 sites). Adapted from BOTOX^® (Allergen, Madison, NJ, USA; on abotulinumtoxin A) Product Insert.

Myofascial pain

According to the DC/TMD the two validated muscle-related Axis I diagnoses that can be diagnosed with confidence are myalgia and myofascial pain with referral (5). They are diagnosed by history and physical examination (Table 1).

Local myalgia, myofascial pain and headache attributed to TMD remain additional myogenous Axis I diagnoses but the patient’s history and physical examination is not generally sufficient to provide an adequate sensitivity or specificity for these conditions. The pathophysiology of Axis I myogenous pain remains unclear with neurological, myogenous and psychological theories proposed (6). Botox has been shown to reduce pain in the myogenous Axis I diagnoses (7-9). Pain reduction appears to be even greater when bruxism and/or psychiatric stress-related comorbidities exist (10). The most ideal location for injection is at the junction of the lower and middle third of the masseter muscle. The most ideal location for injection of the temporalis muscle is at the midpoint of the belly of the muscle. A total of 50 units of Botox is injected into each masseter and temporalis muscle with an equal number of units at each injection site. This results in a typical dose of 200 units for bilateral masseter and temporalis muscles (Figure 2).

Figure 2 Injection sites for the masseter and temporalis muscles. Total of 50 units Botox in the masseter and 50 units in the temporalis muscle with three injection sites per muscle. Botox, botulinum toxin.

Orofacial movement disorders

Orofacial movement disorders include orofacial dystonia and orofacial dyskinesia. These conditions can affect multiple orofacial muscles including platysma, orbicularis oris, buccinator, genioglossus, geniohyoid, digastric and intrinsic tongue muscles. The net result can be involuntary jaw opening, clenching, tongue thrusting and facial tics. They have the potential to result in TMD when the masseter, temporalis, medial pterygoid muscles are involved (11,12). It may also result in temporomandibular joint dislocation when the lateral pterygoid muscle is involved (13-15). The etiology of these movement disorders is unclear and examination of the central and peripheral nervous systems is typically unremarkable. The treatment is often medications including benzodiazepines, anticholinergic medication, levodopa, bromocriptine and baclofen. Botox remains an effective treatment particularly for focal dystonia and dyskinesia.

The technique for injection is as described for myofascial pain when the temporalis and masseter are involved. Injection for the medial pterygoid is more challenging. There are two basic options both requiring EMG guidance. The first option involves an intra-oral injection using 1.5-inch needle that is inserted just lateral to the pterygomandibular raphe and parallel to the ramus of the mandible. This is similar to an Inferior alveolar nerve block except that the needle is intentionally directed parallel to the inner aspect of the ramus. The dose of Botox is typically 20 units. An alternate technique that may be considered in thin patients is an extraoral approach from beneath the antegonial notch. It requires the same 1.5-inch needle. The skin and soft tissue immediately beneath the antegonial notch is displaced medially with the index finger of the non-dominant hand. This allows the Botox needle to be inserted from an inferior direction. The needle is kept parallel to the medial aspect of the ramus to ensure the medial pterygoid muscle is correctly targeted. It is technically relatively simple to perform this injection particularly if the needle is bent at about 30 degrees at the hub to allow the hand holding the syringe to be kept lateral with respect to the neck. Complications after Botox injections are uncommon, however with the medial pterygoid muscle being within the infratemporal fossa there is potential for diffusion with resultant dysphonia and dysphagia.

Botox injection for the lateral pterygoid muscle is technically easier. As with the technique for the medial pterygoid muscle there are two approaches and EMG guidance is required. The first and most simple is an intraoral injection immediately behind the maxillary tuberosity. A tongue blade is used to displace the cheek laterally and with the teeth slightly separated and a 30-degree bend of the needle, the needle is directed medially and superiorly behind the tuberosity until the lateral pterygoid plate is encountered (13). Typically 15–25 units of Botox is adequate (Figure 3A-3D).

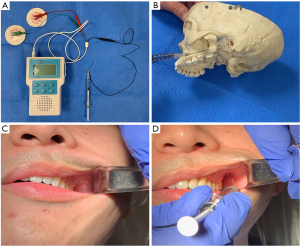

Figure 3 Lateral pterygoid injection technique. (A) Lateral pterygoid injection with electromyography; (B) position of 1.5-inch 25-gauage needle; (C) retraction of cheek and vestibule; (D) syringe and needle position prior to mucosal puncture.

The extraoral technique is more challenging. It requires a straight needle to be inserted immediately beneath the articular eminence and through the sigmoid notch. The needle is kept horizontal but directed slightly anteriorly.

Neuropathic pain

Botox is also known to inhibit neuromodulator and transmitter secretion that may reduce central neuropathic pain. The proposed mechanism of action includes a reduction in the release of excitatory glutamate, SP, and CGRP. Furthermore, Botox reduces the expression of TRPV1 that is associated with capsaicin-evoked and calcium channel responses (16,17).

The injection technique in the management of neuropathic pain is unique in that the Botox is injected subcutaneously in the dermatome overlying the neuropathic pain. The dose varies but generally 5 units of Botox per square centimeter (cm²) of skin is adequate. This does not require EMG guidance and can be completed with a tuberculin needle to reduce discomfort during the injections.

TN

TN is not synonymous with neuropathic pain. The etiology of TN remains unclear although compression of the trigeminal nerve root by the superior cerebellar artery is thought to result in focal demyelination and paroxysms of pain. Additional causes include tumors, multiple sclerosis and post-viral syndromes. The mainstay of treatment is medication including carbamazepine, oxycarbamazepine, phenytoin, gabapentin, pregabalin and baclofen. Surgical treatment involves Gasserian ganglion rhizotomy, gamma knife and microvascular decompression (18-20).

The mechanism of action of the Botox is thought to be similar to that of neuropathic pain. The injection technique is also identical. The time to maximal pain reduction for both neuropathic pain and TN appears to be 4–8 weeks. This is much longer than the 1–2 weeks for muscular injection and may reflect the need for retrograde axonal transport to the CNS.

Bruxism

The beneficial effect of Botox on sleep-related bruxism has been reported (21,22). It appears to reduce the intensity of muscle activity within the masseter and temporalis muscles with a reduction in self-reported pain and jaw stiffness. The injection technique and dosing is identical to that for myofascial pain.

Frey syndrome

Frey syndrome is a rare complication following parotid and temporomandibular joint surgery. It results in gustatory sweating during eating. The parotid gland receives parasympathetic secretory innervation via a complicated neural pathway that involves the auriculotemporal nerve and the release of Ach.

The sweat glands of the skin are innervated by the sympathetic fibers originating from superior cervical ganglion traveling via the same auriculotemporal nerve. Parotid and temporomandibular joint surgery are thought to cause an injury to the auriculotemporal nerve leading to inappropriate parasympathetic innervation of the overlying sweat glands. This can result in profuse sweating during mastication. The diagnosis of Frey syndrome can be made using the minor iodine/starch test. This test will also delineate exact area of skin that is affected. This should be outlined with a skin marker. Botox can be injected subcutaneously using a tuberculin syringe/needle with a dose of 5 units per cm² of skin involved. The therapeutic effect will be apparent in a week and should last 3–6 months (23).

Sialorrhea

The excessive production of saliva or the inability to adequately swallow saliva may result in drooling. This is often seen in patients with neurological disorders including those with developmental delay, cerebral palsy, amyotrophic lateral sclerosis, Parkinson’s disease, cerebrovascular accident and traumatic brain injury. Antisialogogues such as glycopyrrolate have limited efficacy and result in systemic side effects. Surgical procedures including salivary gland duct ligation and sialodochoplasty to reposition ducts has also been described. The use of Botox to reduce salivation has grown in popularity with promising results (24-26). The technique for parotid and submandibular gland injection is relatively simple. The use of ultrasound to identify the precise location of the gland and appropriate intraglandular injection is encouraged. The ideal dose varies depending on the gland size and the severity of hypersalivation and drooling. Doses from 5 to 40 units per gland have been reported.
